Giá sửa chữa bộ điều khiển PCC 1301.1302, 2100, 3110, 3200,3300 Cummins GENSET

Các chức năng của bộ điều khiển pcc1302

•  ·Operates on 12 or 24 VDC.
• · Electronic Governor Enable/Disable (via an external Governor Power Module).
• FAE Engine support utilizing partial PGI CAN protocol support.
•  Automatic Voltage Regulator (AVR) Enable/ Disable.
• PMG or Shunt Excitation methods supported.
•  PCCNet Communications.
• ModBus Communications.
• Digital speed governing.
• Digital voltage regulation.
• Low power sleep mode, with configurable Wake-In-Auto mode.
• Phase voltage and current sensing. Wye and Delta voltage sensing single phase. Current sensing with an external 0−5 amp current transformers.
•  Engine relay drivers.
•  Generator set monitoring. Display status of all critical engine and alternator generator set functions
•  Genset protection – Engine and Alternator protection features.
• Operator Panel Display (optional). Provides easy to use operator display of critical genset parameters and operating history.
•  Advanced serviceability using a PC based software service tool.
• Environmental protection. The control system is designed for reliable operation in harsh environments. The core control board is potted module that is fully protected from the elements.
•  Configurable Inputs and Outputs. Four discrete configurable inputs and two dry contact relay outputs.
• Relay driver output for glow plug or spark igniter controller, switched B+, FSO, Starter, Ready to Load, Local Status, and Keyswitch control.

Các chức năng điều khiển của PCC1302

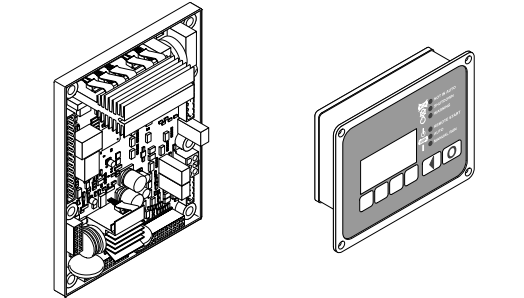

1302 CONTROL SYSTEM Control Module The basic control system for the generator set consists of a single control board with an external control switch and status indicator.

• The control board includes all the functions necessary to locally or remotely start and stop the Genset, provide digital voltage regulation, and protect the Genset.
• To use the electronic governor feature, an external governor power stage may be required to drive the fuel actuator. Control Run/Off/Auto Switch Off Mode −
• If the control is in the OFF mode, the generator set is immediately shut down (if running) and can’t be started. When in OFF mode, all active faults are reset. Run Mode −
• If the control is in the RUN mode, the generator set will execute its start sequence and operate at rated speed and voltage. Auto Mode −
• If the control is in AUTO mode, the generator set can be started with a start signal from a remote device, such as an automatic transfer switch by accepting a ground signal.
• Fault Reset − Placing the switch in the OFF position also resets the active/inactive faults in the control.

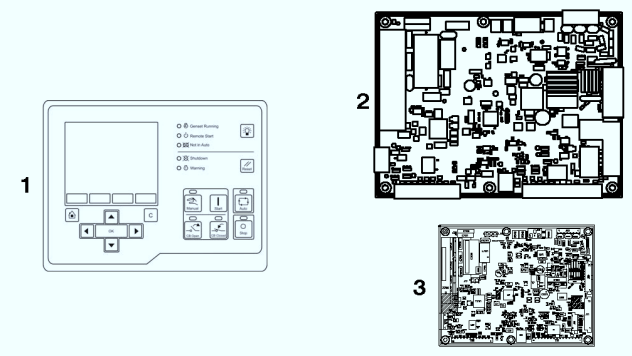

Các chức năng của bộ điều khiển pcc3300
